AUTEL APB112 Smart Key Simulator Works for Autel MaxiIM IM608/ IM508 Ship from US Local Distributor

AUTEL APB112 Smart Key Simulator Works for Autel MaxiIM IM608/ IM508 Ship from US Local Distributor

Availability: In stock

Product type: Auto Key Programmer

Vendor: Autel

$199.00 $209.00

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil...

Subtotal: $199.00

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

APB112
US Ship

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.
Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.

Ship from US Local Distributor

Notice:
1. Cannot be used with the XP200
2. Do Not disconnect the USB Cable when use
3. Can Not be working itself only. the APB112 Smart Key Simulator needs to be used together with the Autel Diagnostic Device.
4. Compatible with IM608, IM508, and MX808IM (If you try to use the Autel G-box with IM508, you need to have the XP400. Otherwise the Autel G-Box can not work with IM508 )
5. Before operating or maintaining this unit, please read these instrucstions carefully, pay extra attention to the safety warnings and precautions. Use this unit correctly and properly.
Failure to do so may cause damage and/ or personal injury and will void the product warranty

Autel APB112 Features:

1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. Toyota 4D (94/ D4, 98) smart key simulation
9. Toyota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. Toyota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)

Important:
Before operating or maintaining this unit, please read these instrucstions carefully, pay extra attention to the safety warnings and precautions. Use this unit correctly and properly. Failure to do so may cause damage and/ or personal injury and will void the product warranty

1. Connect the APB112 smart key simulator to Autel Diagnostic Device using the supplied USD cable
2. After connection, the status indicator lights solid blue, indicating that the APB112 smart key simulator is working properly and then automatically communicates with the diagnostic device.
3. The APB112 smart key simulator application is automatically upgraded on Autel diagnostic device according to the selected vehicle system function
4. Place the smart key simulator close to the ignition coil for data collection, which is used for decoding the chip. After decoding, the original car chip data can be copied.
5. The emulator key chip can generate various types of key chips with subsequent upgrades according to requirements.

Precautions:
1. the APB112 Smart Key Simulator needs to be used together with the Autel Diagnostic Device.
2. Do Not disconnect the USB Cable when use

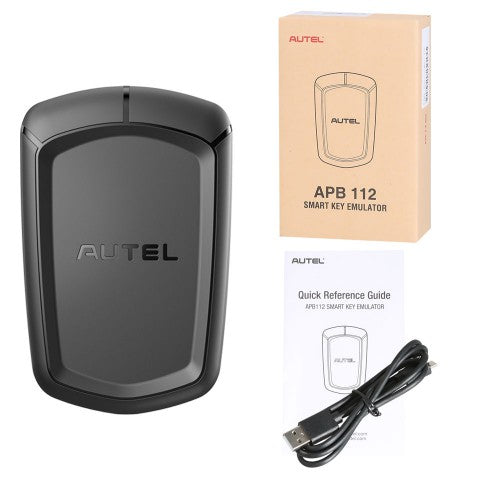

Package List:

1pc x AUTEL APB112 Smart Key Simulator
1pc x USB Cable
1pc x Quick Reference Guide
