Original Autel MaxiSYS MS909CV Heavy Duty Bi-Directional Diagnostic Scanner W/ Bluetooth J2534 VCI Ship from US Local Distributor

Original Autel MaxiSYS MS909CV Heavy Duty Bi-Directional Diagnostic Scanner W/ Bluetooth J2534 VCI Ship from US Local Distributor

Availability: In stock

Product type: Auto Diagnostic Tool

Vendor: Autel

$3,899.00 $4,349.00

MS909CV Scanner Highlights:1. No IP Limitaion (Global Version)2. Includes Multimeter & Amp Clamp3. Language: English, Spanish, Portuguese4. One Year Limited Warranty and...

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Tags:

MS909CV Scanner Highlights:

1. No IP Limitaion (Global Version)
2. Includes Multimeter & Amp Clamp
3. Language: English, Spanish, Portuguese
4. One Year Limited Warranty and a year of Free Software Updates
5. Support heavy Duty Battery Test & Health Report with included MaxiBAS B200 tester with alligator clamps
6. ADAS Calibration Software for Class 3-5 vehicles and Class 6 to 8 Vehicles with Dynamically Calibrated Systems

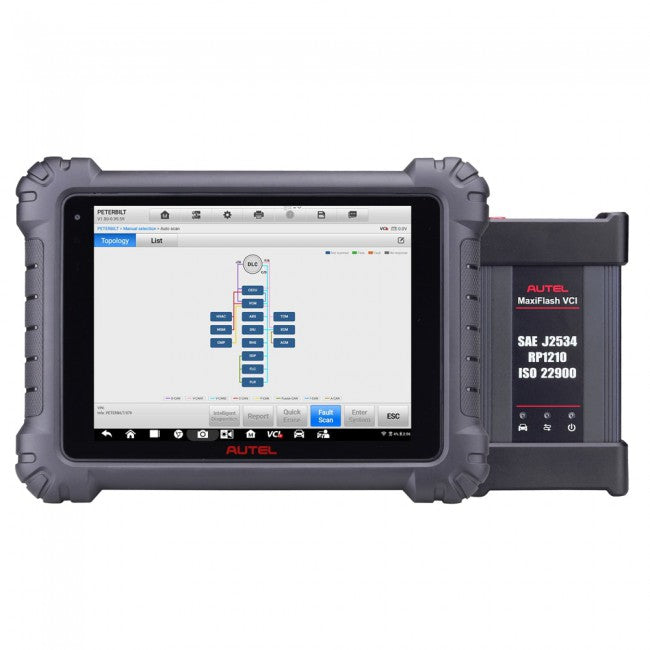

7. Diagnostics with Topology Module Mapping and Enhanced AutoSCAN / VINScan
8. MaxiSYS MS909CV performs enhanced all system diagnostics on more than 80 models of light, medium, and heavy duty commercial vehicles
9. Upgraded Octa-Core processor and 128GB storage and 9.7-inch Wireless Android-Based Touchscreen and the whole-new MaxiFlash VCI (J2534 Pass-thru programming device ) to deliver smooth operation
10.Ship from US Local Distributor

Description:

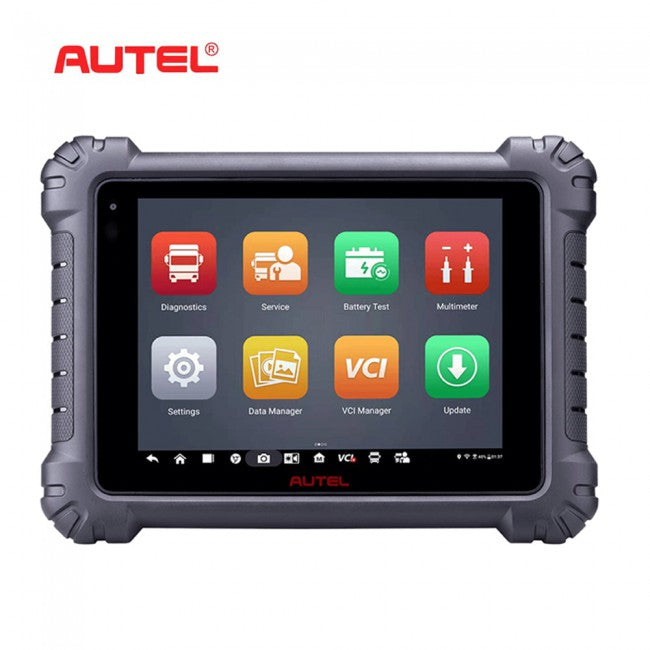

The MaxiSys MS909CV heavy-duty truck diagnostic tool provides the full functionality and online repair information you need when diagnosing vehicles, identifying faults, and researching repair issues. It features a powerful Octa-Core processor and a 9.7'' TFT-LCD capacitive touchscreen for swift diagnosis and optimum viewing. As a diagnostics and information system, the MaxiSys MS909CV scanner not only displays the relevant repair fixes and cases gathered from experienced industry experts but provides step-by-step guidance to ensure the repair is done correctly and efficiently.

What are the advantages of MS909CV when compared with MS908CV?

1. 909CV firmware is updated than MS908CV.
2. 909CV VCI is updated.
3. Software supports ADAS.
4. Supports Topology.
5. Supports Coding etc.

MaxiSYS HD MS909CV 3-In-1 Heavy Duty Repair

1. Smart Diagnostics

a. Enhanced AutoSCAN / VINScan for easy vehicle identification
b. Pre/Post scan reports
c. Module Topology on Select Vehicles (coming soon)

2. ADAS Calibration

a. Class 6-8 Dynamic Calibration
b. Class 3-5 Complete ADAS Coverage
c. Class 6-8 Static Calibration (coming soon)

3. Battery Analysis

a. Heavy Duty Battery Test & Health Report
b. Includes the BT506 and the BTAK

Other Features:

1. 9.7" Touchscreen tablet running Android 7.0 Operating System
2. Octa-Core Processor / 4GB RAM & 128GB On-board Memory
3 Cameras: Front 5.0MP / Rear 16MP, autofocus with a flashlight
4. Connectivity: WiFix2, BT, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (supports up to 256GB)
5. 15000mAH 3.8V lithium-polymer battery
6. Charging via 12V AC/DC power supply
7. Print via WiFi to PC to Autel's "Maxi PC Suite" software
8. Save reports to PDF and email

Your One-Year Pass to Diesel Repair Standard Includes:

Truck Fault Codes – Tap into the largest code database in the industry to search for MID, PID, SPN, and FMI, and OEM flash codes.

Technical Repair Docs - 2 Per Month – Instantly access, save, or print complete remove + replace the information for your repair from anywhere.

Wiring Diagrams - 2 Per Month – Searchable, color coded, easy to understand wiring schematics for on-highway trucks that you can print or download to your device.

VIN Decoder – Quickly decode your commercial truck VIN. Get detailed information including manufacturer, make, model, type, fuel type, engine info, and more.

Symptom Based Troubleshooting - 2 Per Month – Provides easy to read diagnostic procedures for common fault symptoms.

Truck Labor Times - 2 Per Month – Win your customers over with accurate labor time estimates, and eliminate guesswork with our easy-to-use commercial truck SRTs.

Parts Cross Reference – cross 2.5 million+ heavy-duty parts at the push of a button. When you find the part, cross it with our aftermarket database to find the best option for you.

Exploded Views – find detailed exploded diagrams so you can identify the parts you need - even without a VIN.

Also Available for Purchase:

Equipment Fault Codes – Several hundred thousand repair documents for heavy equipment. We cover 3,000 ECMs including CAT, John Deere, Cummins, Volvo, Bobcat, Case, Deutz, Doosan, Genie, JLG, HINO, Isuzu, Challenger, Kobelco, Komatsu, New Holland, Perkins, Yanmar, ZF, and many more.

Autel MaxiSys MS909CV Coverage

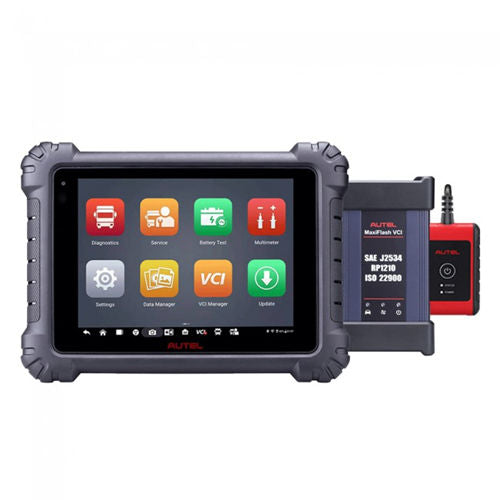

The MS909CV includes coverage for more than 80 models of light, medium, and heavy-duty vehicles. The MaxiFlash VCI is compatible with the latest J2534 protocols (DOIP) and is compliant with RP1210 and ISO 22900.

Maxisys MS909CV Specifications:

Operating System	Android 7.0
Processor	Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
	BT v.2.1 + EDR
	GPS
	USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
	HDMI 2.0
	SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight
Camera	Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone
	Dual Speakers
	3-Band 3.5 mm stereo/standard headset jac
Power and Battery	15000mAH 3.8V lithium-polymer battery
Power and Battery	Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temperature	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions(W x H x D)	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
